- Up to 64 tests can be performed on one plate
- With test impact voltage (Vbr), TIA working current (Icc), dark current (Idark), light induced current (Iop), light responsivity (Resp), measurement D+/D- voltage.
- Select the light couple mode, the choice can choose between different types of light mode (accurate), or provide mode (fast)
- Built-in 1490nm light source, light output can be adjusted
- With software screening and classification function
- Height adjustment function, can have height adjustment function according to different products
- Dimensions (W600*L650*H700 mm)
- One year warranty

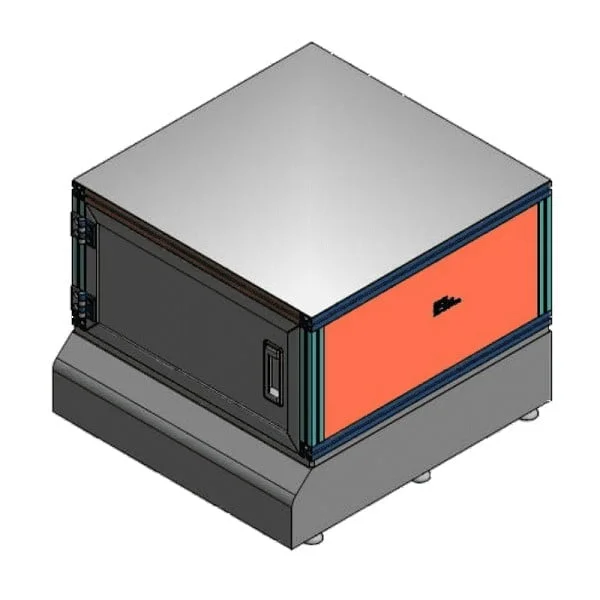

APD TO-CAN Auto Sorting Machine
Description

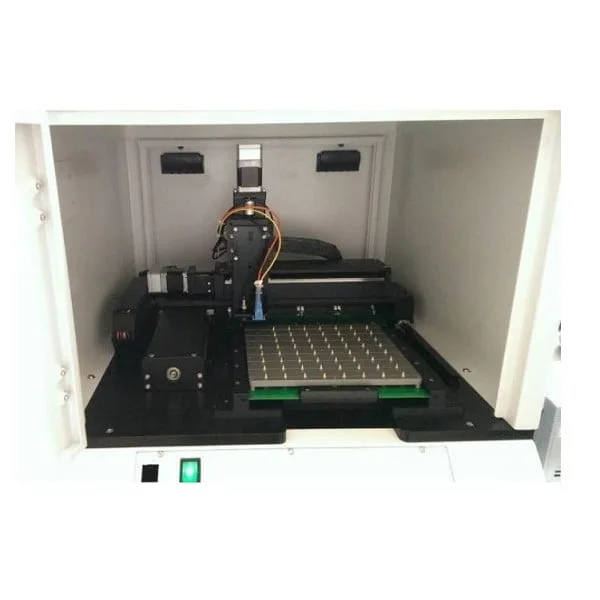

The XYZ gantry mechanism is composed of high-precision sliding table, which has the performance of high stability and high accuracy. The built-in is equipped with an adjustable light source (default wavelength 1490nm, replaceable), which allows users to adjust the output optical power. On the hardware device, a Keithley2400 is attached, which allows users to measure accurate dark current, and provide Vbr measurement and Vop output. Furthermore, it is equipped with the function of measuring D+/D- to realize the automation of multi-channel and multi-function measurement.
